HS 973C

Garter ring automat

Garter ring automat, sewing automats


Ful­ly auto­mat­ic pro­duc­tion of sil­i­con coat­ed garters from con­tin­u­ous elas­tic up to 100 mm width with­out oper­a­tor.

The unique con­cept of the automat makes it pos­si­ble to han­dle even high­ly adhe­sive and curly garters. Very high repeata­bil­i­ty is guar­an­teed.

The seam is absolute­ly flat, ergonom­ic and has a high resis­tance. Addi­tion­al mode for ful­ly auto­mat­ic cut­ting to length of elas­tic tape with­out sewing.

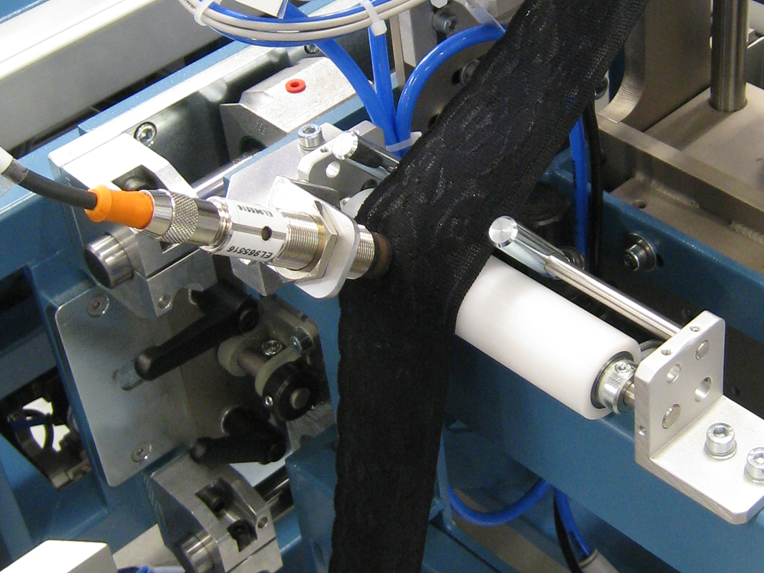

New option: Tape joint detec­tion

For recog­ni­tion of the bond­ed joint of 2 tape ends, with a new sen­sor. Alu­mini­um bond­ing tape is not nec­es­sary for detec­tion, the sen­sor also iden­ti­fies paper and plas­tic adhe­sive tape joints. The high scan­ning speed doesn’t affect pro­duc­tiv­i­ty. Opti­mal instal­la­tion of the sen­sor is pos­si­ble due to its com­pact design.

After recog­ni­tion of the joint, the soft­ware cal­cu­lates whether or not a com­plete piece still can be pro­duced. The tape is then trans­port­ed to just after the adhe­sive joint and cut. The waste will be dis­card­ed.

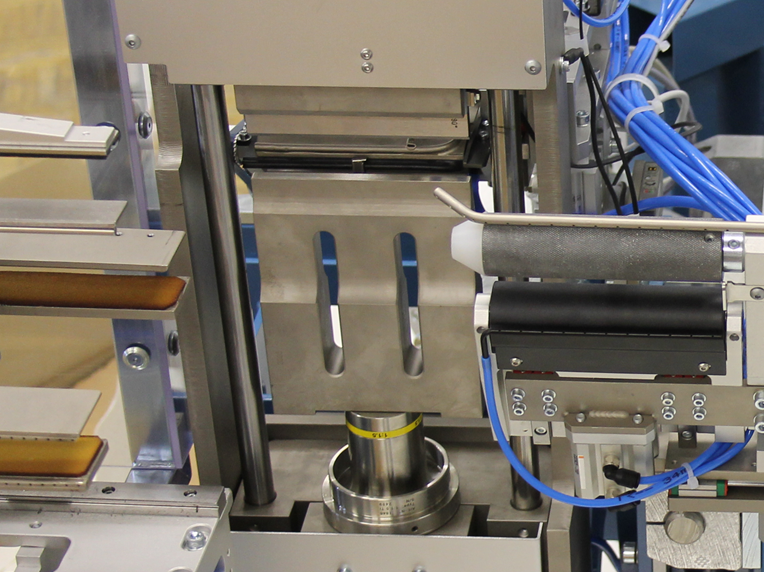

Ultra­son­ic cut­ting unit

Ultra­son­ic cut­ting unit for sil­i­cone coat­ed tapes

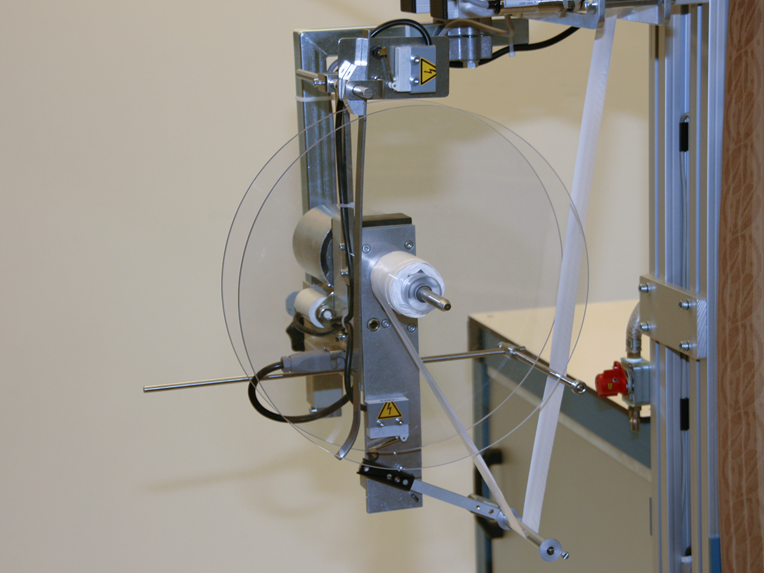

Removal of back­ing paper and wind­ing unit Tape Alu-joint detec­tion

Hold­ers, pho­to­cell, soft­ware (only for alu­mini­um adhe­sive tapes)


HS 973/CT/PLKG1010 garter ring automat, cold cut, clos­ing with PLKG1010

HS 973/UST/AMS210 garter ring automat, ultra­son­ic cut, clos­ing with AMS210
