HS C9L-F8

2 nee­dle hem­ming automat for cir­cu­lar Oper­a­tion

Ful­ly auto­mat­ic hem­ming of waists of T-Shirts, sweat­shirts, polo shirts, ath­let­ic shirts with stack­ing (option­al). The oper­a­tion is lim­it­ed only to the inser­tion, this reduces the skill require­ments of the oper­a­tor to a min­i­mum. The use of two automats with one oper­a­tor is eas­i­ly pos­si­ble nev­er­the­less the high­est pos­si­ble pro­duc­tiv­i­ty and con­stant qual­i­ty is guar­an­teed. The opti­mum hem­ming guide and the proven edge guid­ing ensure smooth oper­a­tion. The use of a spe­cial sewing machine pro­vides more thread in the seam and there­fore high seam elas­tic­i­ty.

Overview of fur­ther hem­ming machines.



                           New option:
Side seam turn­ing sys­tem

Auto­mat­ic turn­ing of 1 or 2 nee­dle over­lock side seams, par­tic­u­lar­ly for t-shirts where it is espe­cial­ly required for both side seams to be turned towards the back of the gar­ment.

The turn­ing sys­tem can be acti­vat­ed by stitch count or option­al­ly through auto­mat­ic detec­tion of the side seam.

It is not nec­es­sary to reduce the sewing speed at the point of turn­ing the side seam.

Options

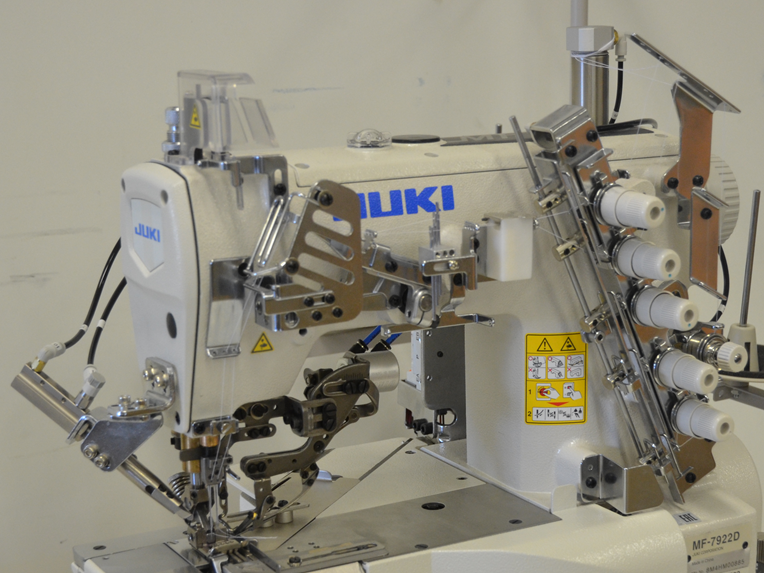

Juki MF7923H23B..UT57

3 nee­dle cylin­der-arm hem­ming machine, alter­na­tive­ly avail­able with nee­dle dis­tance 4.8 / 5.6 or 6.4 mm, thread cut­ter, cov­er thread cut­ter, left side knife, fab­ric waste suc­tion, 6’000 rpm

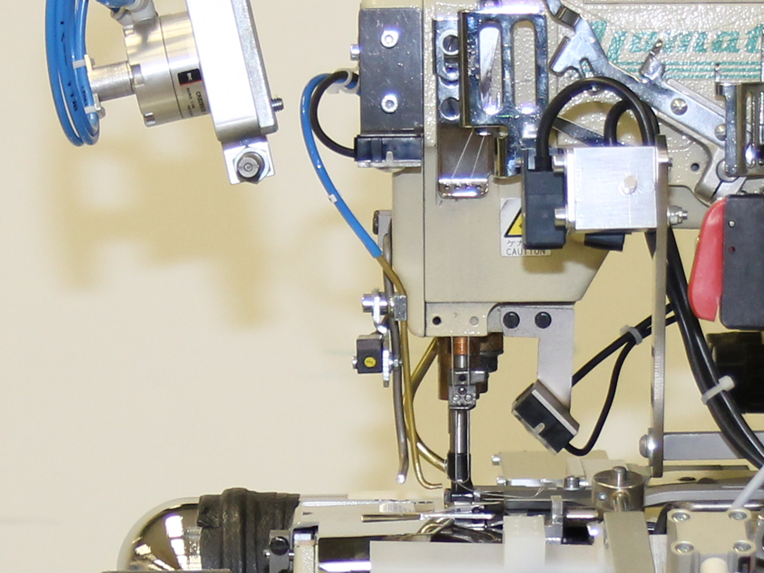

Yam­a­to VG 2740-.…./UTA34

2/3 nee­dle cylin­der-arm hem­ming machine, alter­na­tive­ly avail­able with nee­dle dis­tance 3.2 / 4.0 / 4.8 / 5.6 or 6.4 mm, thread cut­ter, 6’500 rpm
Yam­a­to VG 3721-.….S8-8/WF4/UTA44/ST2A
2/3 nee­dle cylin­der-arm hem­ming machine, alter­na­tive­ly avail­able with nee­dle dis­tance 4.0 / 4.8 / 5.6 or 6.4 mm, thread cut­ter, cov­er thread cut­ter, left side knife, fab­ric waste suc­tion, 5’500 rpm

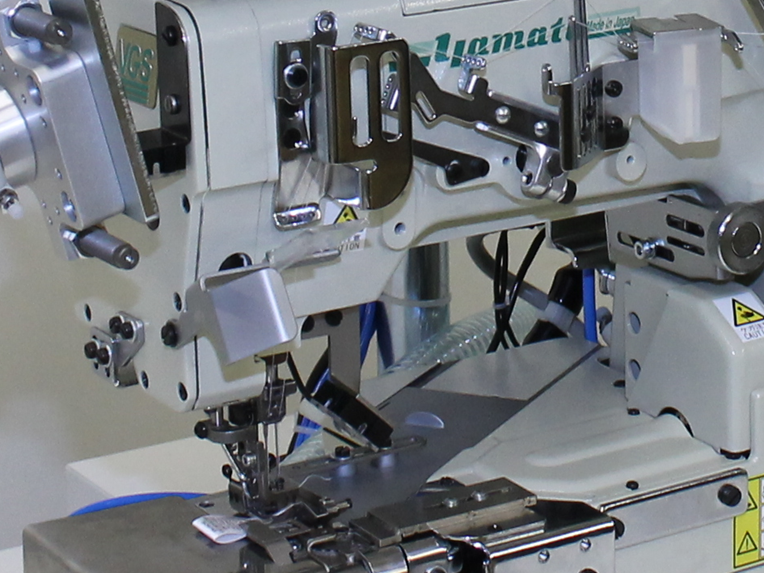

Yam­a­to VGS 3721-.….S8-8F-W11/UTA44
2/3 nee­dle cylin­der-arm hem­ming machine, top feed, alter­na­tive­ly avail­able with nee­dle dis­tance 4.0 / 4.8 / 5.6 or 6.4 mm, thread cut­ter, left side knife, fab­ric waste suc­tion, 5’500 rpm

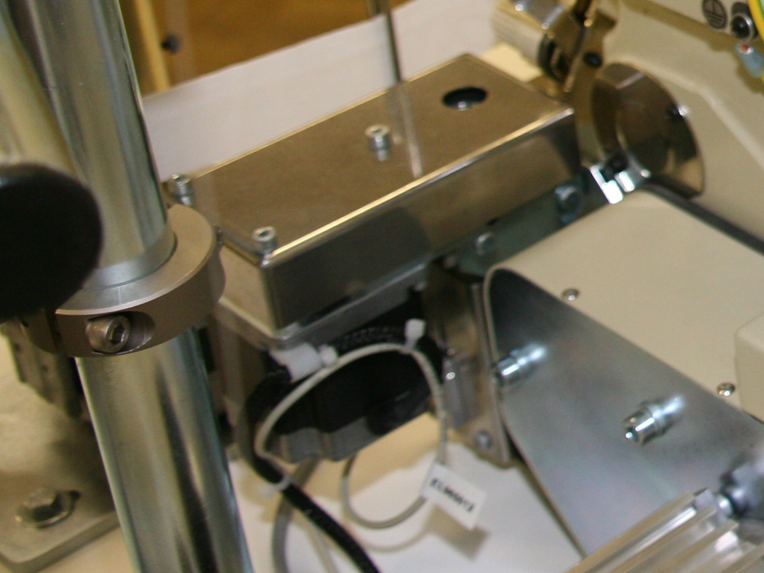

Dif­fer­en­tial change with fast spin­dle
SMD40 step­per motor dri­ve, step­per motor
HS 800–2 label dis­penser

Label dis­penser with step­per motor for cut­ting to length of tape, mark read­er, fold­ing unit, device mount­ing, roll hold­er, knife cut­ting sys­tem, pneu­mat­ic, hold­ing clamp for labels, CB40-C con­trol unit with step­per motor mod­ule, com­pact ver­sion, SMD40 step­per motor dri­ve

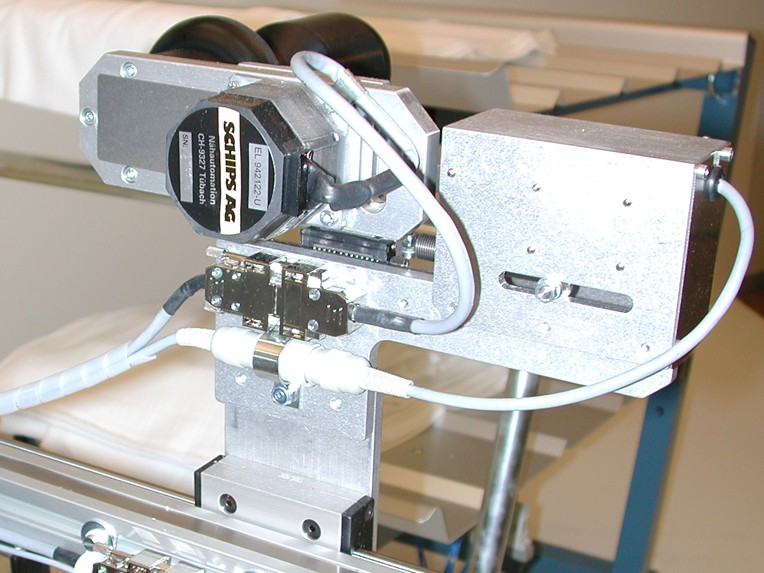

Ten­sion arm with step­per motor
Feed roller, sen­sor, CB40-C con­trol unit with step­per motor mod­ule, com­pact ver­sion, 2 SMD40 step­per motor dri­ves, 2 step­per motors
NAES” type “W”

Seam-end-sen­sor
