EST 51

Electronic control

The powerful but low cost control.

Ideal for easy applications to the programmed control of outputs, a stepper motor as well as evaluation of inputs – with the most comfortable 7” touch screen use.

Software structure with 4 program modes (automatic, manual, settings, utilities).

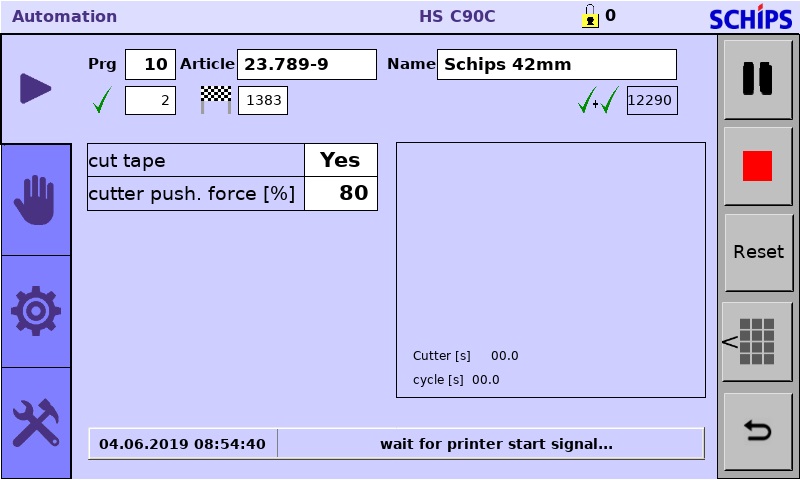

Automatic

Program sequence of software optimized for the hardware.

100 articles with 10 seams and 10 sections each can be stored. The management of more than 100 articles is optionally available.

For each article a program number, an own article number as well as an individual article description can be defined. You can search for all 3 criteria.

The manufactured as well as the target quantity are displayed and can be changed directly. A day counter informs about the continuously produced quantity.

The most important parameters are found in the top-level. To the right, information about the process is displayed, which can be suppressed by the manual function key. The lower status line gives precise information about the program sequence and any faults.

A program is started with the green arrow key, interrupted with the pause key and aborted with the “red square” key. The reset key returns all cylinders and motors to the home position.

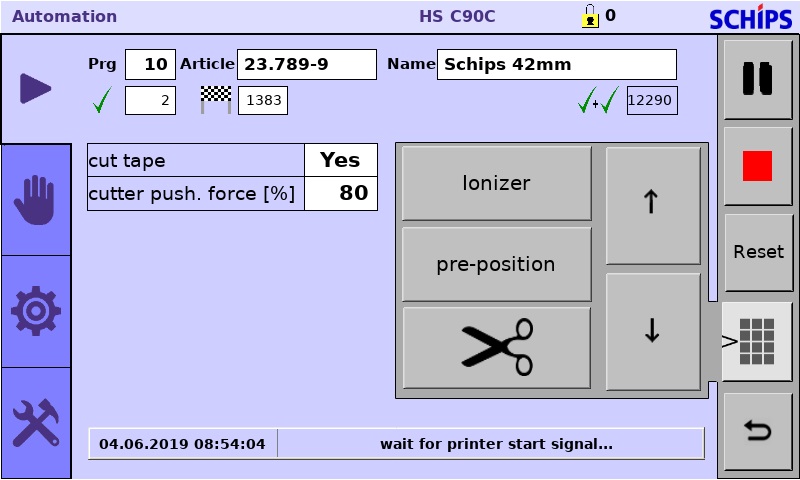

The manual function key displays the manual functions, keys which release an action. With the return key one reaches a menu level higher.

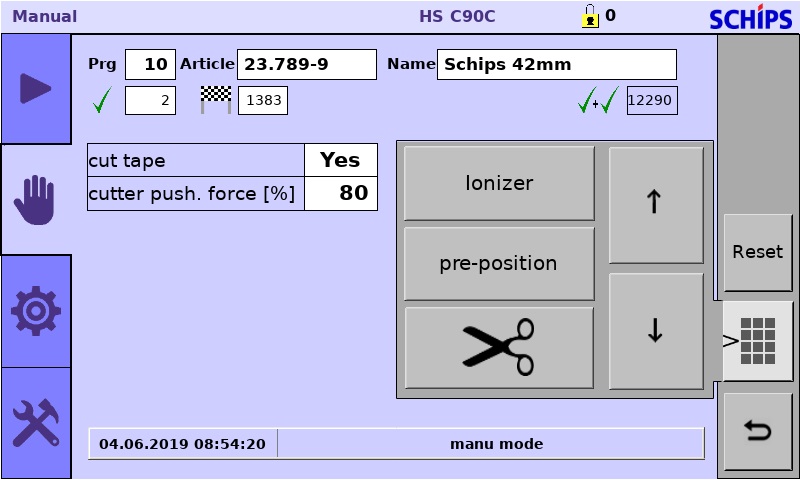

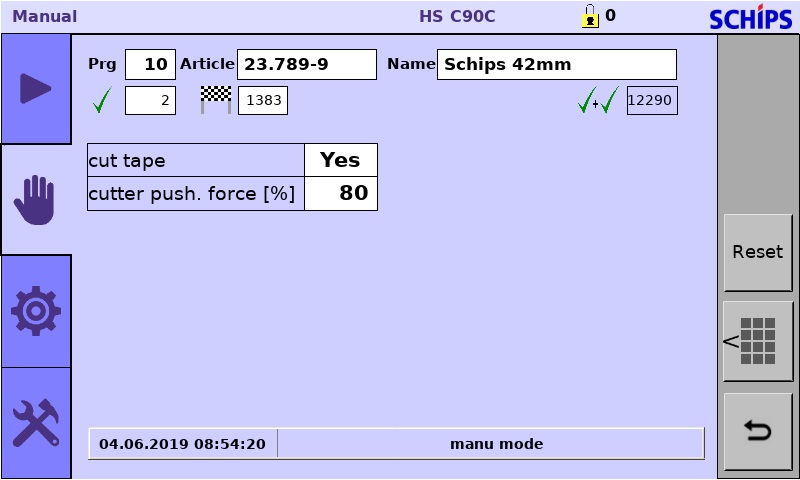

Manual

There is no program sequence. The functions of the system can be operated individually or in combination. Ideal for adjusting the hardware.

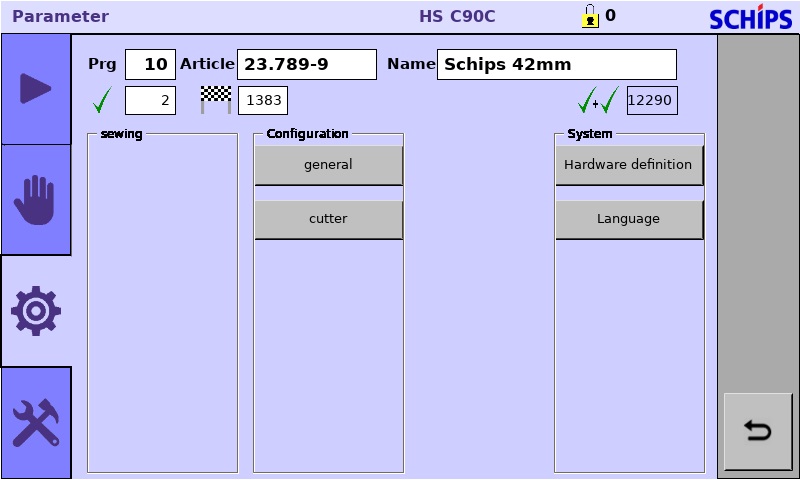

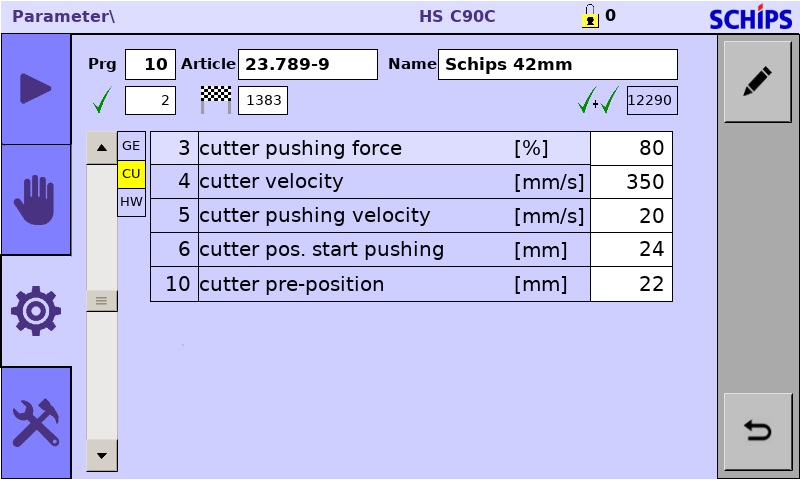

Settings (program parameter)

This area defines the parameters that are used in the mode Automatic. The parameters are organized according to procedure as well as hardware components.

Parameter validity:
System: for all articles
Configuration: for all seams of an article
Sewing: For one seam and its sections

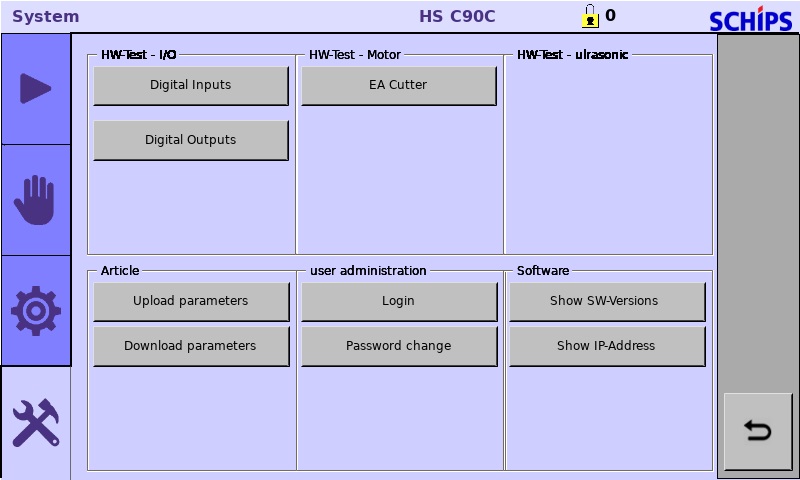

Utilities (control panel)

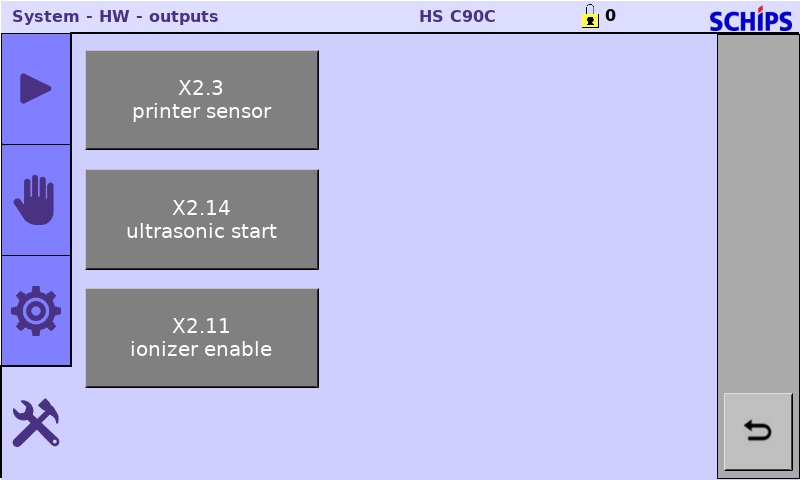

  • System supporting services mode and hardware testing
  • Query of the current software version and IP address
  • Store of parameters
  • Define access protection

EST-51 Specifications

Processor

  • 2GHz Quad-Core ARM Cortex-A53
  • 1GB RAM
  • 64 Bit CPU

Display

  • 7” Touchscreen Display
  • 10 finger capacitive touch.
  • 800 x 480 Pixel RGB-Display bei 60 fps
  • 24-Bit-colour
  • 70° viewing area

Interface

  • Ethernet 10/100
  • EtherCAT
  • 3× USB 2.0
  • I/O Connector (up to 10 integrated In- and Outputs)
  • optional: 2.4GHz 802.11n wireless, Bluetooth 4.1, RS232, I2C, SPI
