HS C5H-F8

Fully automatic attaching of tape to open waist of men’s and women’s briefs

2/3 needle interlock sewing machine, sewing automats



Automatic attaching of tape from a roll or out of a box, with 2/3 needle interlock sewing machine, to open (front and back pieces separately) or half closed waist (one side seam open, the other closed).

Depending on the seam, up to 10 different tape tensions can be programmed, which will be used automatically after a pre-defined number of stitches. The metering device with integrated sensor constantly monitors the tape tension and adjusts instantly for any changes.

Precise tape cutting at the beginning and end is also fully automatic.

The concept of this automat guarantees consistently high seam quality, shortest possible training time and highest productivity. It is possible for an operator to work with several machines.

New: HS C5H-F8 with EST 50 control
Remote maintenance: in case of parameters incorrectly or not optimally configured, our support team assists quickly, directly to the control system, from Switzerland.Software updates can be made via internet by SCHIPS company specialists. The operator doesn’t need to have any knowledge for uploading or installation of software updates.The operation is self-explanatory and easily achievable without further instructions. A visual hardware test enables checking of the components.Directly stored parameters are arranged at the front level. During the sewing process (only while sewing with pedal), interactive changes are possible. These will be stored in the current section length and immediately implemented.

New option: Tape joint detection

For recognition of the bonded joint of 2 tape ends, with a new sensor. Aluminium bonding tape is not necessary for detection, the sensor also identifies paper and plastic adhesive tape joints. The high scanning speed doesn’t affect productivity. Optimal installation of the sensor is possible due to its compact design.

After recognition of the joint, the software calculates whether or not a complete piece still can be produced. The tape is then transported to just after the adhesive joint and cut. The waste will be discarded.



Options

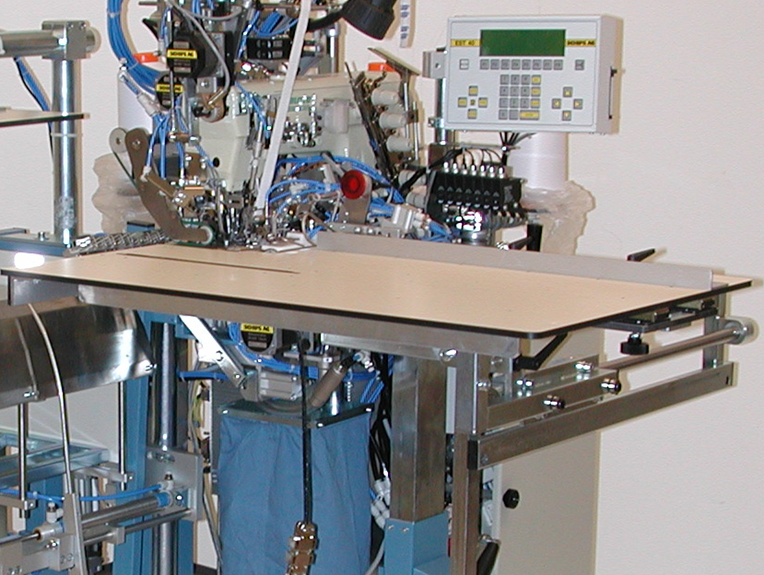

Additional table with tape feeding
For flat pieces (front and back parts of slips separately), plug table top with integrated tape drive, synchronized with sewing speed

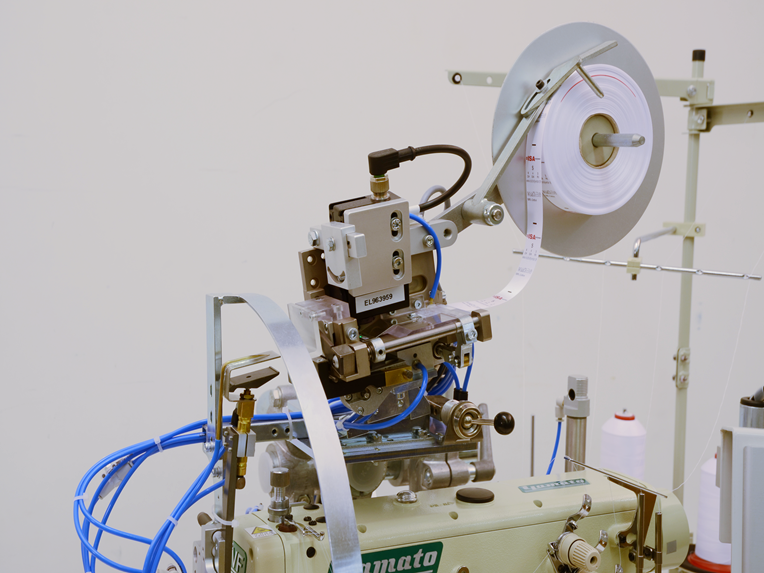

Label dispenser

Label dispenser by stepper motor. The label is positioned between elastic and fabric. 2 stepper motors, 2 drivers

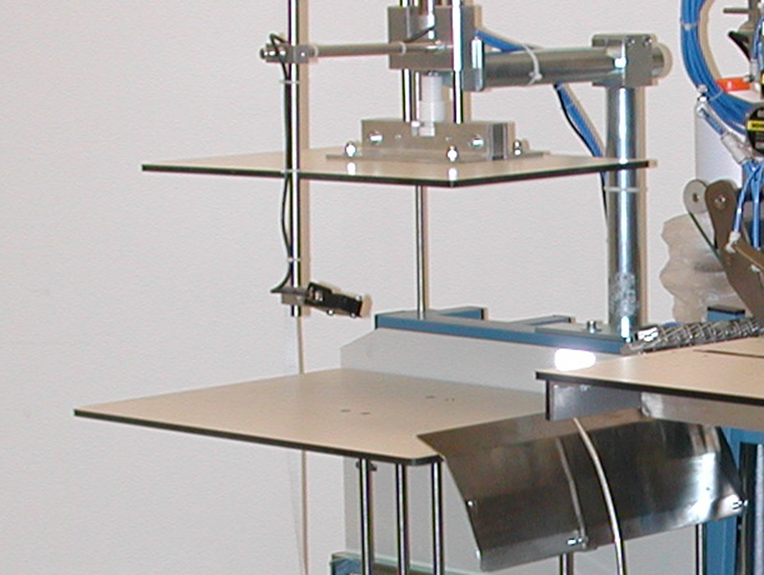

Stacker

The finished garment will be folded in the middle of the seam and stacked. Top stacker position constant due to automatic height compensation.

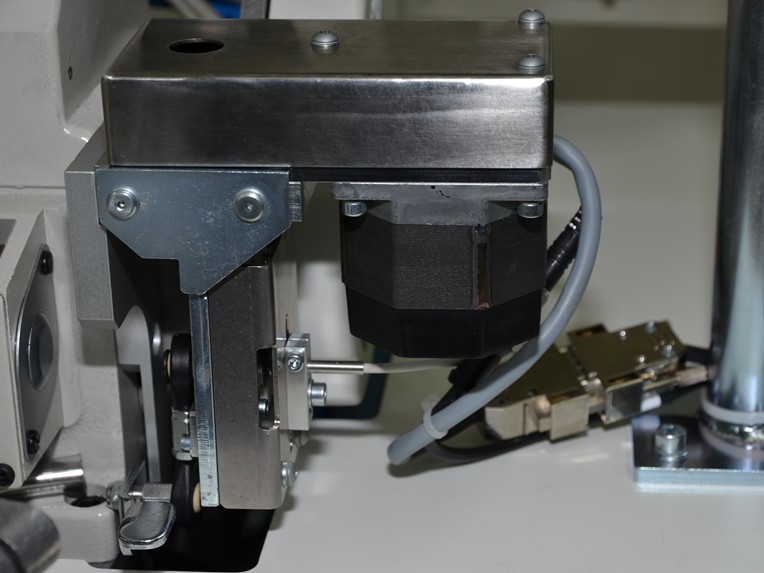

Motor differential changing

Changing the feed of differential feed dog by stepper motor. For each seam a changing on any place with any value can be programmed. Ideal to gather, stretch or flaten fabric with highly accurate predefined places.

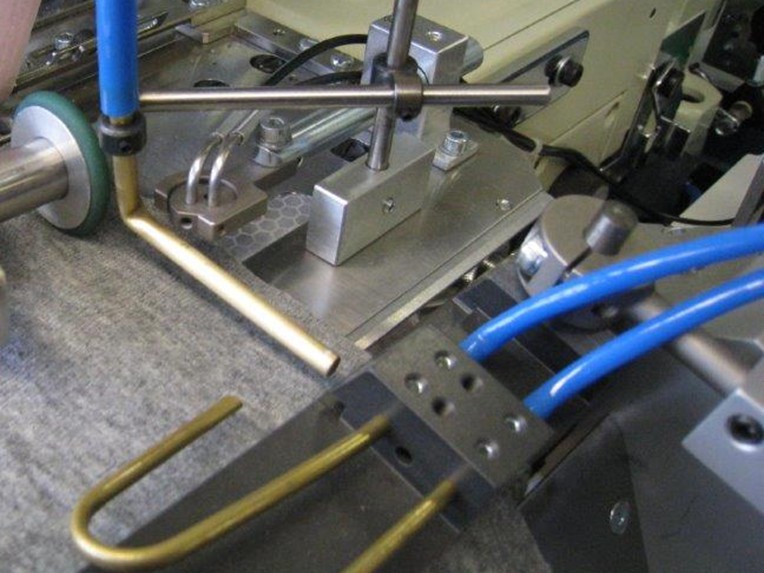

Smoothing device

Pneumatic and mechanic smoothing device for microfiber and single jersey materials

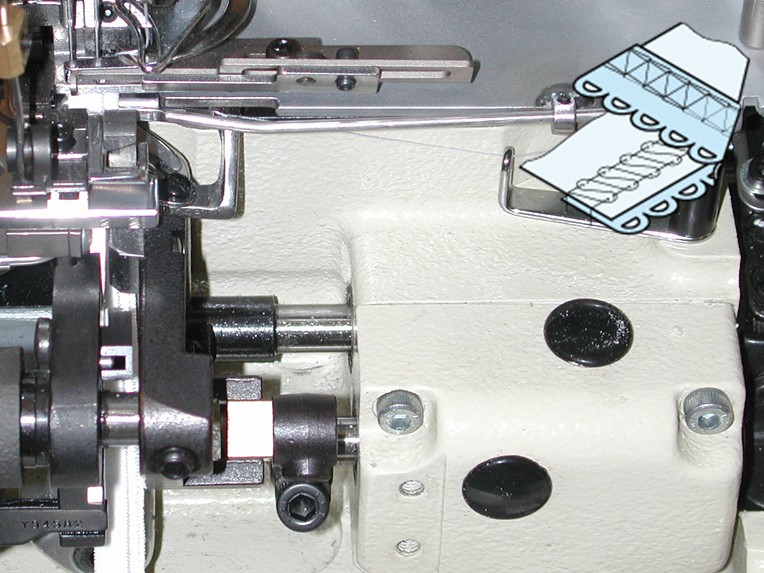

SU – Lace from the bottom
Conversion kit: device, device holder, special sewing parts in 2.8 mm, 3.2 mm, 4.0 mm, 5.6 mm und 6.4 mm available

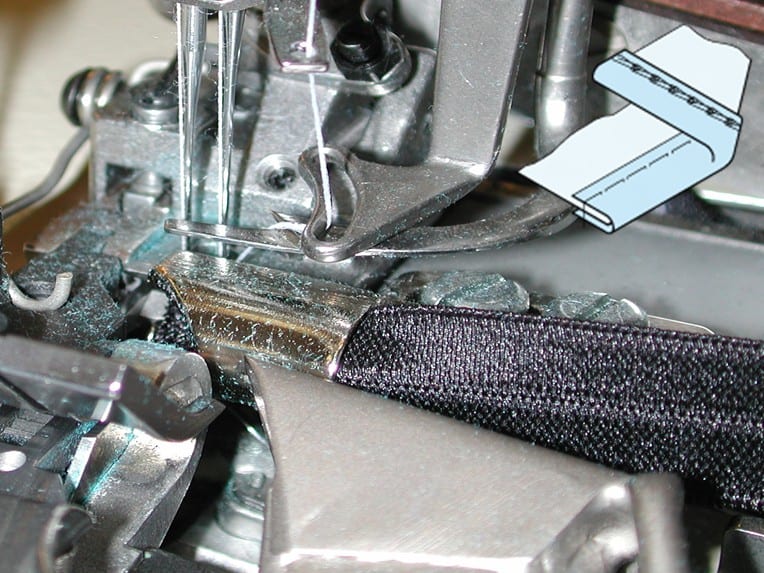

F – Folded elastic

Conversion kit: device, device holder, special sewing parts in 2.8 mm, 3.2 mm, 4.0 mm, 5.6 mm und 6.4 mm available

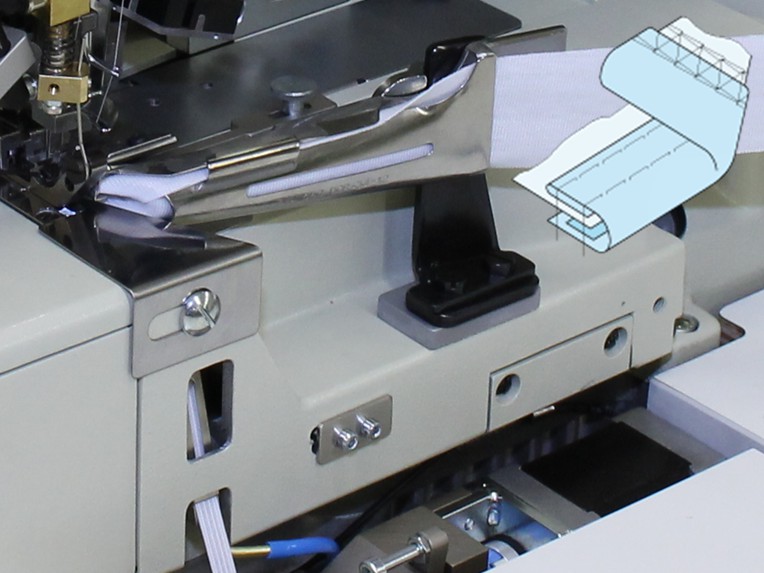

BG – Binding with elastic

Conversion kit: device, device holder, special sewing parts in 2.8 mm, 3.2 mm, 4.0 mm, 5.6 mm und 6.4 mm available

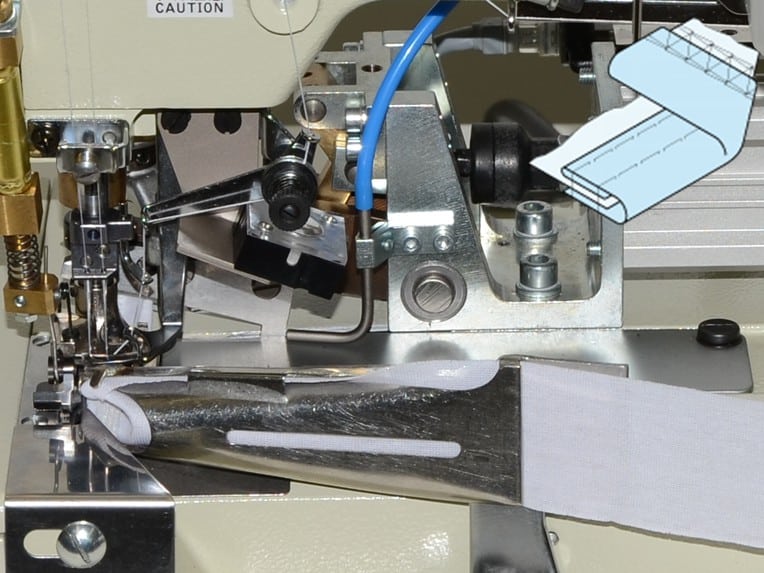

B – Binding

Conversion kit: device, device holder, special sewing parts in 2.8 mm, 3.2 mm, 4.0 mm, 5.6 mm und 6.4 mm available
